Bay & Bow Windows Pittsburgh, PA

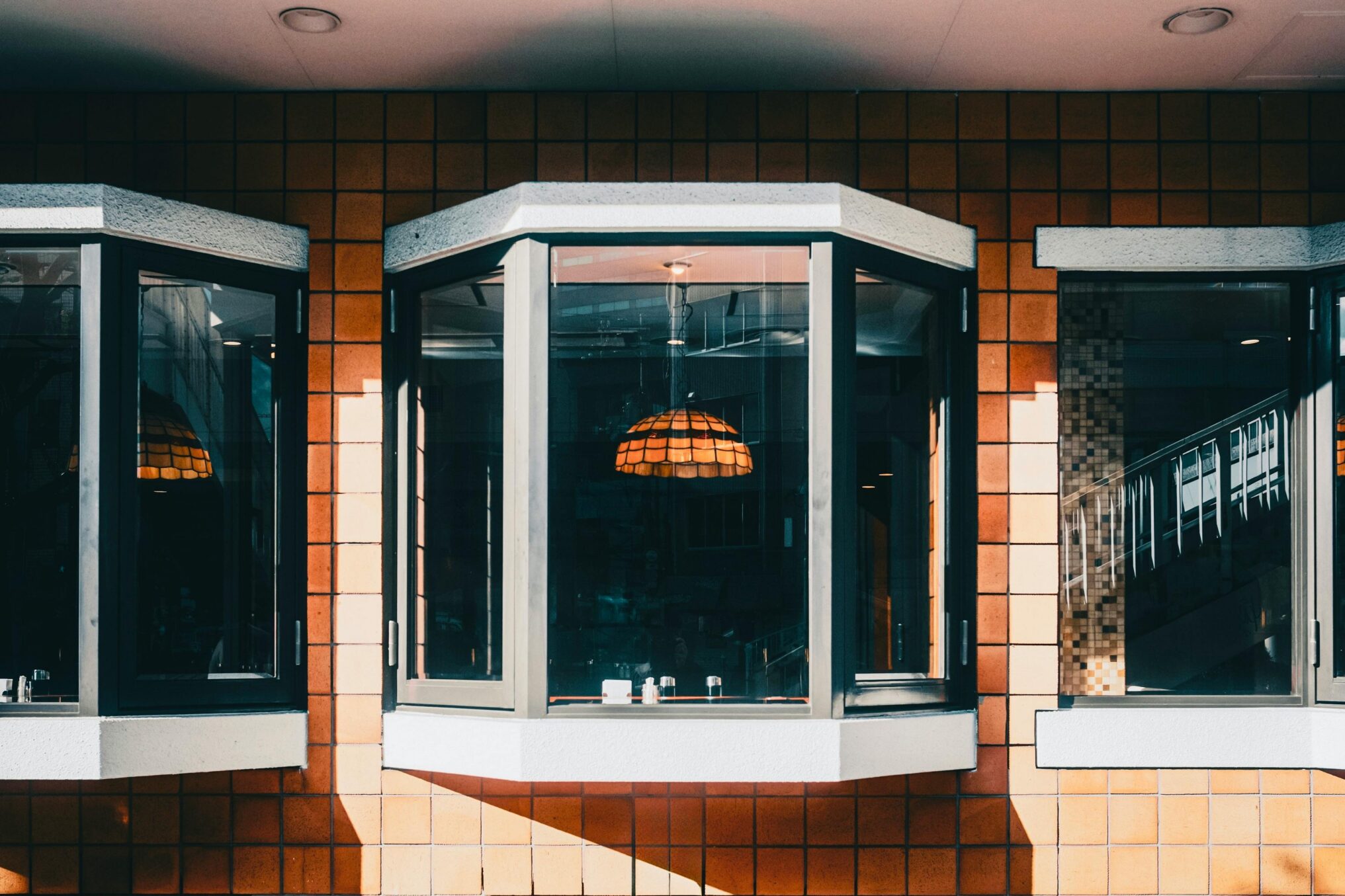

Bay and bow windows add space, light, and character to Pittsburgh homes.

Our Bay & Bow Window Approach

Bay and bow windows add light, space, and architectural character to a room — but they also extend outside the home's insulation envelope, which means thermal performance depends entirely on how they're built. We handle the full scope: structural header, framing, insulation at the bay floor and knee wall, window unit installation, exterior flashing, and interior trim — not just the window itself. Every project starts with a written quote and ends with a walkthrough and warranty documentation before we close out.

  • Structural work included

  • Full exterior weatherproofing

  • 13+ years experience

Need a quote? Send details.

Bay & Bow Windows: Light, Space, and Done Right

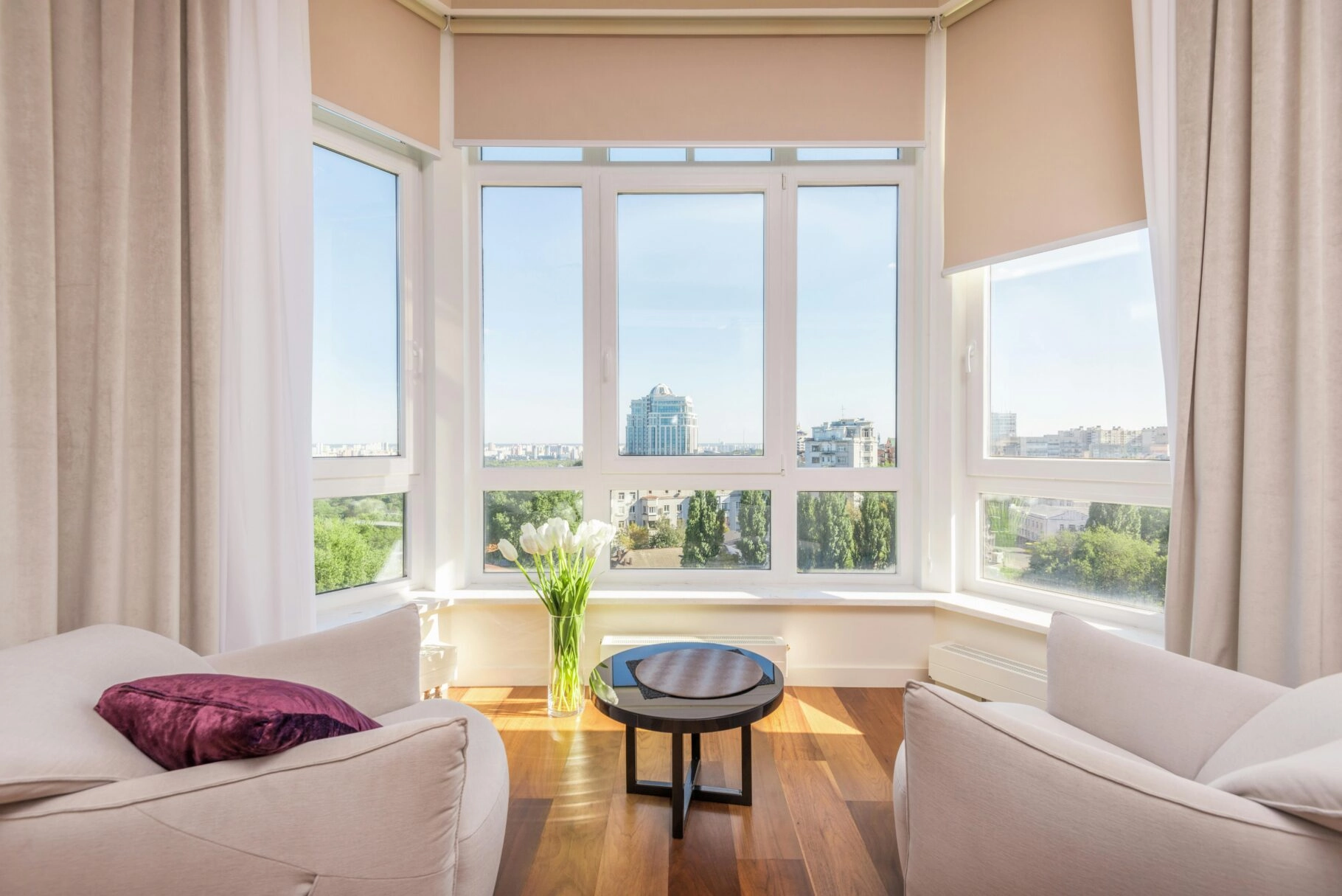

The interior benefit of a bay or bow window is real. The projection creates an alcove that reads as additional floor space. Natural light enters from three or more directions instead of one. Many homeowners finish the seat area as a window seat with storage below—a popular feature in Pittsburgh bungalows and two-story colonials where interior square footage is fixed. We frame and rough-in the seat area as part of the installation when that’s the plan.

On the exterior, bay and bow windows are a significant architectural statement. The roof over the projection needs to be properly built and waterproofed—a small shed roof with correct flashing is standard. Pittsburgh’s rainfall and ice dam conditions make that flashing detail critical. We build the projection roof with proper slope, ice-and-water shield, and step flashing at the wall junction.

Glass selection matters on bay and bow windows because the side units are often in direct sun for part of the day. Low-E glass is standard in our installs—it reduces solar heat gain without reducing visible light, keeping the space comfortable in summer without sacrificing the light that’s the whole point of the window.

Ready to add a bay or bow window to your Pittsburgh home? Get a free estimate that covers the complete scope.

Why Pittsburgh Homeowners Choose Picture Perfect Exteriors

Structural work included. We assess and build the support system—header, knee wall, or cable—not just drop the unit in.

Full exterior weatherproofing. Projection roof with proper slope, ice-and-water shield, and step flashing—built to handle the area weather.

13+ years experience. Bay and bow installations require more coordination than standard windows. Experience matters.

Written estimate. Complete scope and pricing in writing—framing, window, and finish work included.

Free estimate. We assess your wall, discuss design options, and give you a real number.


Get In Touch With Us


Ready To Work ?


Call us now

How Bay & Bow Window Installation Works

Step 1 — Structural Assessment & Design

We evaluate the wall, existing header, and floor framing. We discuss bay vs. bow, projection depth, window style, and seat options. You get a written estimate covering the full scope.

Step 2 — Rough Opening & Support Framing

The existing opening is modified or extended. A properly sized structural header is installed above. The knee wall or support cables below are built to carry the load of the projection.

Step 3 — Window Unit & Roof Installation

The window assembly is set, leveled, and secured. The projection roof is framed, sheathed, and waterproofed with ice-and-water shield and step flashing at the wall.

Step 4 — Exterior Trim & Sealing

Exterior casing, corner trim, and soffit are installed. All joints are sealed and caulked. The projection looks finished and weather-tight from outside.

Step 5 — Interior Finishing & Walkthrough

Interior jambs, casing, and the seat deck are finished. We walk you through every window, operation, and the seat area before leaving.

FAQ

Frequently Asked Questions

Clear answers before you book. If you don't see your question — contact us and we'll help.

ROOF RELIABILITY SCORE

Leak prevention & weather resistance.

88% +9% improvement after service.
What's the difference between a bay and a bow window?

A bay window typically has three sections—a large center unit and two angled sides—projecting outward at 30 or 45 degrees. A bow window uses four or more equal sections in a gentle arc. Bays have a sharper, more architectural profile. Bows create a softer curved look. Both project from the wall and require structural support.

How much does a bay or bow window cost in Pittsburgh?

Bay and bow installations are more involved than standard replacements because of the structural and roofing work. Expect a wider range based on size, projection depth, and finish options. We give you a detailed written estimate covering every part of the scope—no surprises.

Can any exterior wall support a bay or bow window?

Most wood-frame walls can be modified to support a bay or bow, but the header size, floor framing, and wall configuration affect what's involved. We assess structural feasibility during the estimate. Some situations require additional engineering—we flag those early.

Do bay windows in Pittsburgh need special weatherproofing?

Yes. The projection roof over a bay or bow window needs to be properly built and waterproofed. Pittsburgh's freeze-thaw cycles and heavy spring rains make ice-and-water shield and correct step flashing essential. We don't skip those details.

Can the bay window seat area include storage?

Yes. We can frame a seat deck with lift-top storage or drawers below as part of the installation. It's a popular option in Pittsburgh homes where interior square footage is at a premium.

Do bay windows cause drafts in Pittsburgh winters?

Older or poorly installed bay windows often do — the bay floor extends outside the home's insulation envelope and can get very cold. Proper installation includes insulating the bay floor and knee wall and using thermally broken frames. We address the full thermal envelope, not just the window unit.
